ELECTRONICS

Ensemble electronics are said to have a seventh sense because of their live-like music-making, transporting the ‘soul’ of the music
into the ‘heart’ of the listener. A host of elements make up a build quality hard to find elsewhere:

  • Ensemble designed jacks and binding posts with 3x higher conductivity
  • Internal unique Ensemble wiring, screened
  • Printed circuit boards 6x the normal quality for perfect signal integrity
  • Isolation transformers for galvanic separation of unit from system
  • Power factor correction for optimal power transmission
  • Chassis with decoupled segments to prevent resonance transmission
  • Hand-soldered circuit boards (e.g. 1400 hand-soldered junctions on Massimo Fonobrio main boards)

And many more.

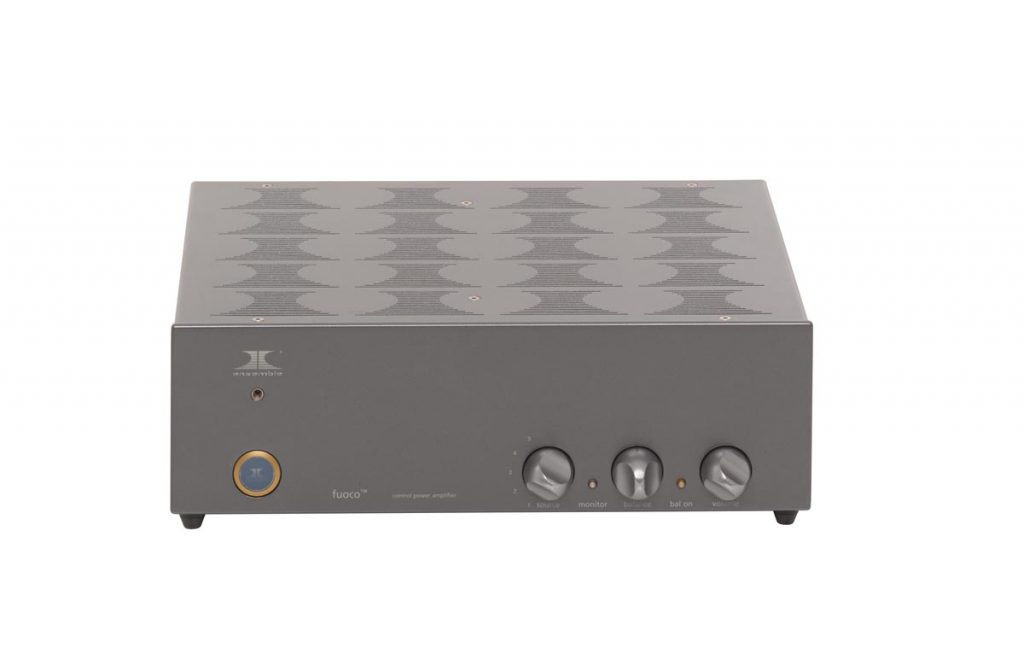

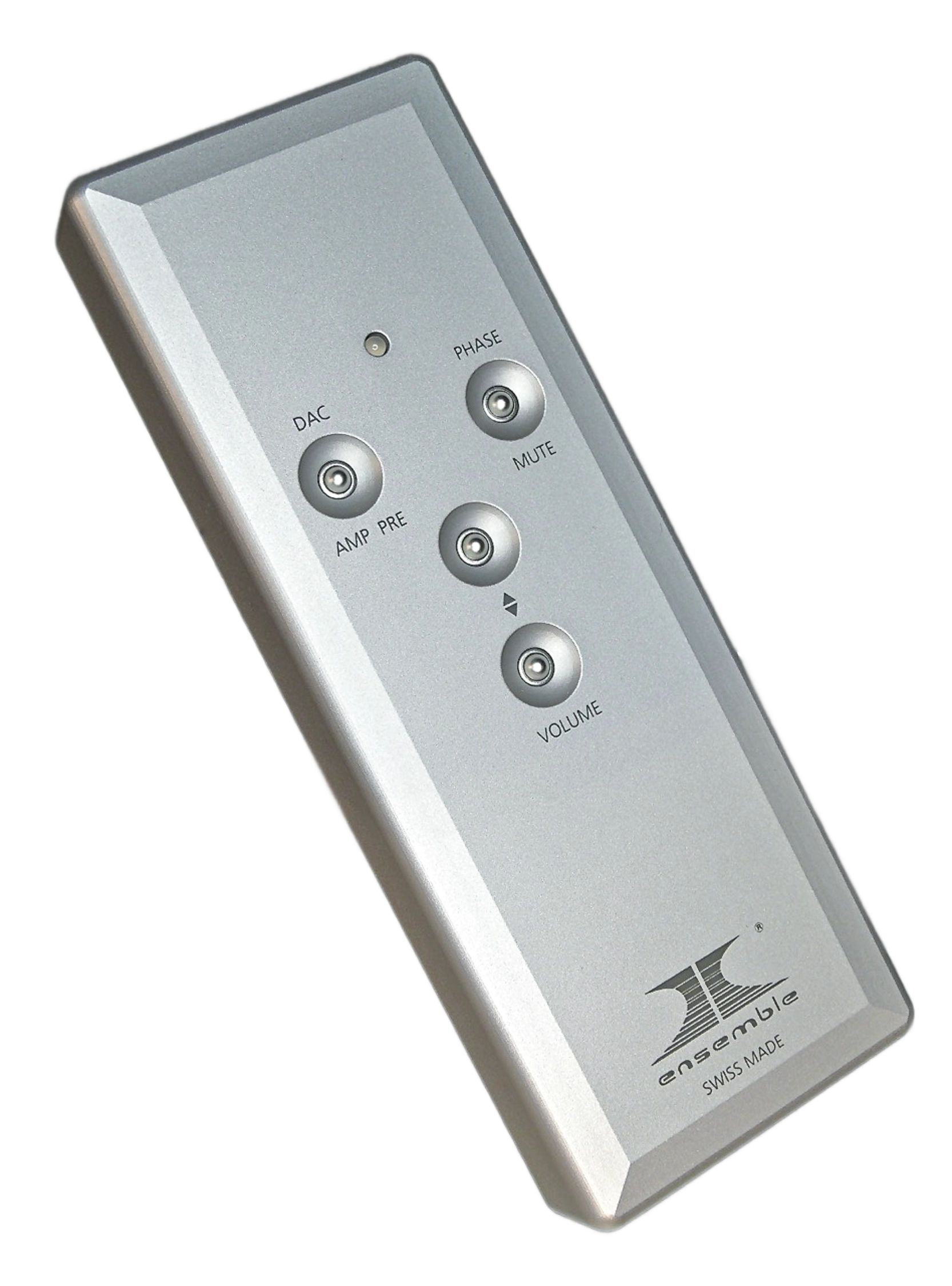

Ensemble FUOCO Remote

Integrated Amplifier

MASSIMO FUOCO™

Hybrid Technology

Power Output

  • 2 x 100 W (8 ohm)
  • 2 x 150 W (4 ohm)
  • Integrated amplifier with tube input stage
    2 x ECC81, NOS; fitted with Ensemble TUBESOX™ dampers
  • Power stage with bipolar transistors
  • Galvanic isolation mains transformer, symmetrical design
  • Remote and manual control of volume and monitor input
  • Balance control, switchable on-off
  • Excellent match for all types of speakers (known for its ability
    to wake many up musically)
  • Reliable long-term performance (no tube adjustments)

Inputs & Control

  • 6 LINE inputs, including MONITOR IN; MONITOR OUT
  • Relay-controlled inputs (no need for 'noise stopper' caps)
  • Ensemble RCA ALLINO™ jacks
  • Remote and manual control of volume and MONITOR IN
  • Balance control (switchable)

Power Management

  • Symmetrical isolation mains transformer
  • Power factor correction
  • 8-tier operational safety
  • Auto-resetting mute function in case of overload
    - to protect speakers

Included

  • Remote control handset (machined from solid piece of aluminum)
  • 1.5 m Ensemble LUMINOSO™ power cable.
  • Integrated amplifier (tubes/bipolar transistors)
  • 2 x ECC81 (select grade, matched British made NOS tubes)
  • TO-3 metal encapsulated power transistors
  • Symmetrical galvanic isolation transformer
  • Power Output: 100/150 W (8/4 ohm)
  • Dimensions (W x H x D): 395 x 135 x 315 mm
  • Weight: 15.8 kg
Diapason dOR Hifi LOGO 15 mm
HAUTE FIDÉLITÉ icone référence 22.5 mm
Positive feedback WRITERS' CHOICE AWARDS
learn more

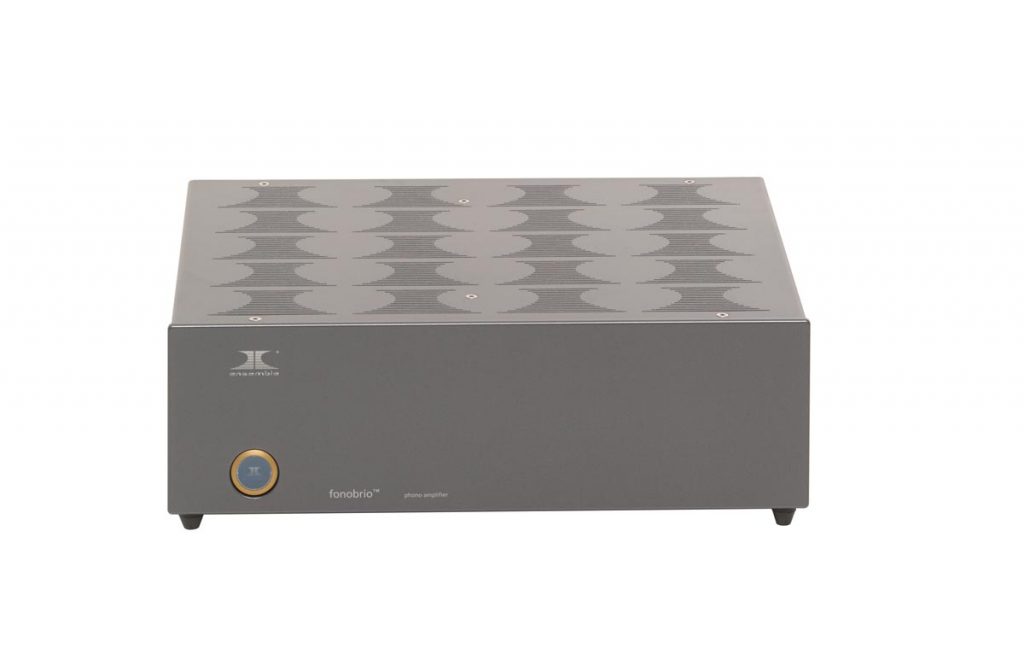

Phono Preamplifier

MASSIMO FONOBRIO™

Audiophile Design

Sonic Characteristics

  • Phono preamplifier (MM/MC) in dual-mono configuration
  • Fully discrete circuitry with Direct (DC) coupled Class A output stage (AC coupling available as internal option)
  • Ideal match for (very) low output MC phono cartridges
  • Ultra-low noise
  • Very high resolution, no spotlighting
  • RIAA precision +/- 0.2 dB 100 Hz-16 kHz
  • Extreme transparency
  • Life-size 3D projection
  • Widest dynamics
  • Breathtaking transient response
  • Captivating musicality
  • Emotionally engaging through the tangible realism
    of its performance

Inputs

  • Physically separate inputs for MM and MC
    Toggle switch keeps only one input open
    (no need for 'noise-stopper' plugs)

Gain & Impedance Control

  • MC Section: Two gain stages, 24 dB and 30 dB, switchable,
    with a maximum total gain of 74 dB
  • Gain and ultra-low noise floor ideal for (very) low MC phono cartridges
  • Adjustable impedance for MC (dip switches on rear panel)
  • Adjustable output levels (internal switchable adjustment)

Included

  • 1.5 m Ensemble LUMINOSO™ power cable
  • Phono preamplifier (MM/MC / Dual-Mono)
  • Class A output stage (DC coupled)
  • Max gain 74 dB
  • Dimensions (W x H x D): 395 x 135 x 315 mm
  • Weight: 9 kg
MASSIMO FONOBRIO DIAPASON 755 0626 EN
Hifi+ awards 2026 PHONO STAGE OVER £5K HC
HAUTE FIDÉLITÉ ICONE meilleur achat
learn more

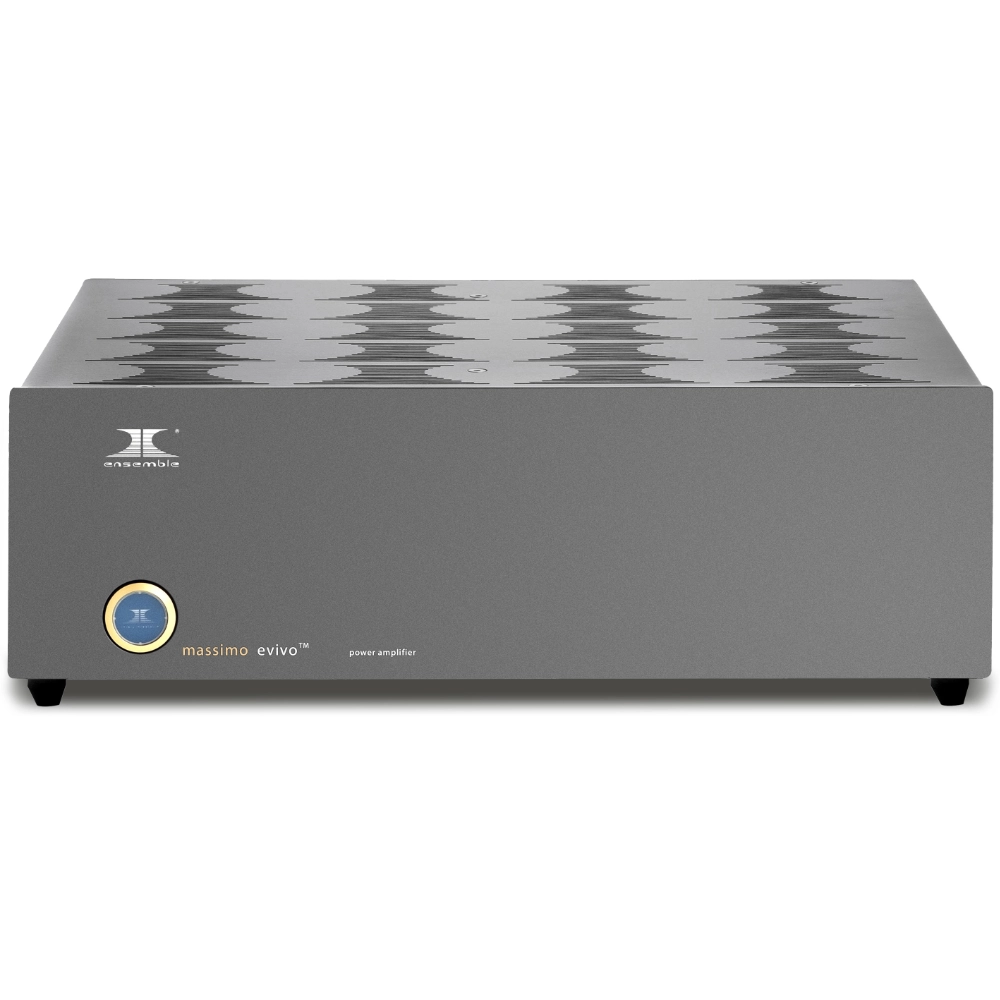

Massimo Evivo

Power Amplifier

MASSIMO EVIVO™

Hybrid Technology

Power Output

  • Power amplifier with tube input stage
    2 x ECC81, NOS; fitted with Ensembe TUBESOX™ dampers
  • Power stage with bipolar transistors
  • Galvanic isolation mains transformer, symmetrical design
  • Excellent match for all types of speakers
  • Reliable long-term performance (no tube adjustments)
  • 2 x 100 W (8 Ohm)
  • 2 x 150 W (4 Ohm)

Inputs

  • 2 LINE inputs, Ensemble RCA ALLINO™, copper-tellurium,
    silver plated, gold plated

Outputs

  • 5-way Ensemble SYNERGIA™ binding posts,
    copper-tellurium, silver plated, gold plated

Power Management

  • Galvanic isolation mains transformer, symmetrical design
  • Power factor correction
  • 8-tier operational safety
  • Auto-resetting mute function in case of overload
    - to protect speakers

Included

  • 1.5 m Ensemble LUMINOSO™ power cable
  • Power amplifier (tubes/bipolar transistors)
  • 2 x ECC81 (select-grade, matched British made NOS tubes)
  • TO-3 metal encapsulated power transistors
  • Symmetrical galvanic isolation transformer
  • Power Output: 100/150 W (8/4 ohm)
  • Dimensions (W x H x D): 395 x 135 x 315 mm
  • Weight: 15.6 kg
learn more

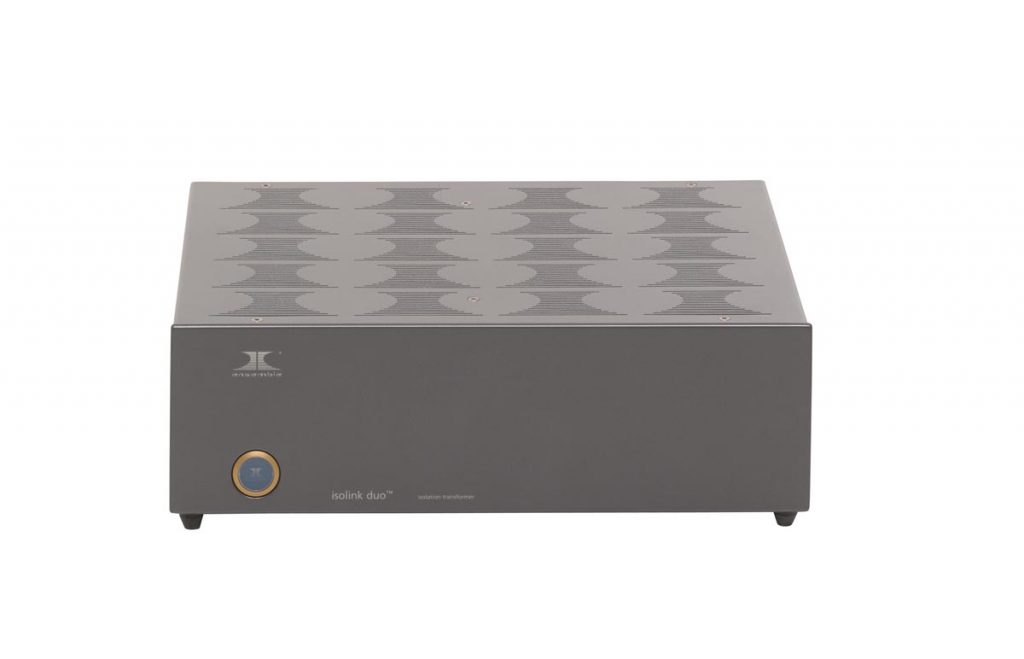

Two Independent Isolation Transformers with Power Factor Correction

MASSIMO ISOLINK DUO™

learn more

Galvanic powerline (AC) isolation

Sound Enhancement

  • Removes haze and glare
  • New found ultra-quiet canvas from which music can unfold
  • Music takes on shine and sparkle
  • Performance of digital equipment greatly benefits

Galvanically isolates digital and analog sources from each other and from the other components of a music system
Not to be confused with powerline filters that are grounded to earth.
Allows earth-free operation of attached source devices. Therefore avoids earth-loops and incursion of common mode disturbances

  • Outlet 175 VA for equipment with power consumption
    up to 100 W
  • Outlet 250 VA for equipment with power consumption
    up to 140 W
    NOTE: power consumption is NOT = power output of an amplifier

Outlets

  • Two 230 V EURO outlets (175 VA, 250 VA)
  • Two 115 V NEMA 5-15 (US style) outlets (175 VA, 250 VA)

Included

  • Two 1.5 m Ensemble LUMINOSO™ power cables
  • Highest audio-grade galvanic isolation transformers
  • Symmetrical design, three screens, thermo-fuse protected
  • Decoupled from chassis, anti-resonance mounting
  • Power factor correction
  • Protective earth-line choke for equipment that for some reason needs earth connection
  • Dimensions (W x H x D): 395 x 135 x 315 mm
  • Weight: 18 kg
AL ZORBO

Equipment Platform

AL-ZORBO™

Superior Decoupling

  • Much more than just decoupling:
    resonance absorption and isolation on two levels
  • Individual isolation of each device's feet

Premium Engineering

  • Single-piece machined aluminum chassis is for rigidity
    and resonance control
  • Multi-layer/constrained layer sandwich construction
  • Equipment platform
  • Dimensions (w x d x h): 430 x 346 x 38 mm
  • Weight: 7.6 kg
  • Maximum recommended load: 35 kg
learn more

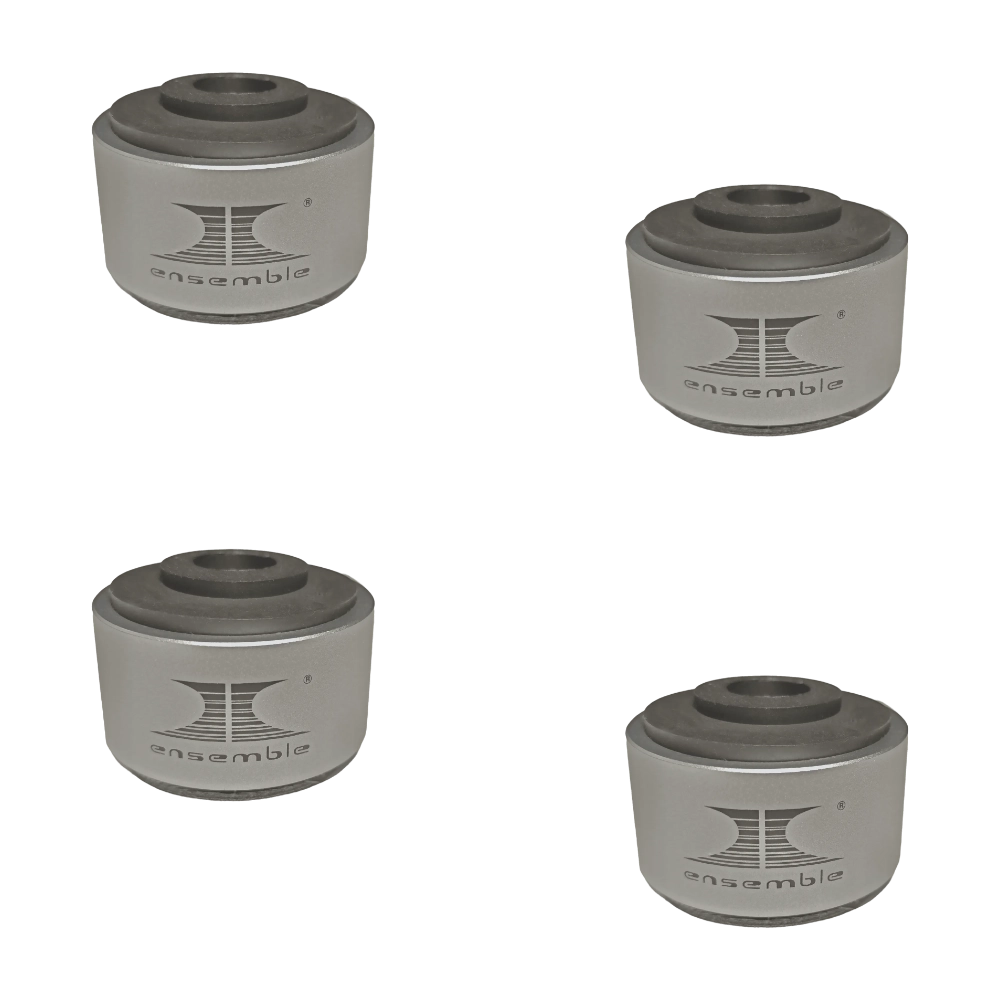

GAMBAGARD 4x

Absorber Feet and Isolators

GAMBAGARD™

Broad-Spectrum Vibration Control

Application

  • Highly effective for turntables without decoupled subchassis
  • Ideal for electronics with rigid feet
  • Isolators and absorbers of vibrations and resonances across
    a wide frequency spectrum
  • Anti-RF
  • Precision machined aluminum ring
  • High performance anti-resonance formulated elastomer dampers on both sides
  • Anti-RF mineral core
  • Diameter: 35.5 mm
  • Height: 25.5 mm
  • Type: Absorber feet & isolators
  • Diameter: 35.5 mm
  • Height: 25.5 mm
